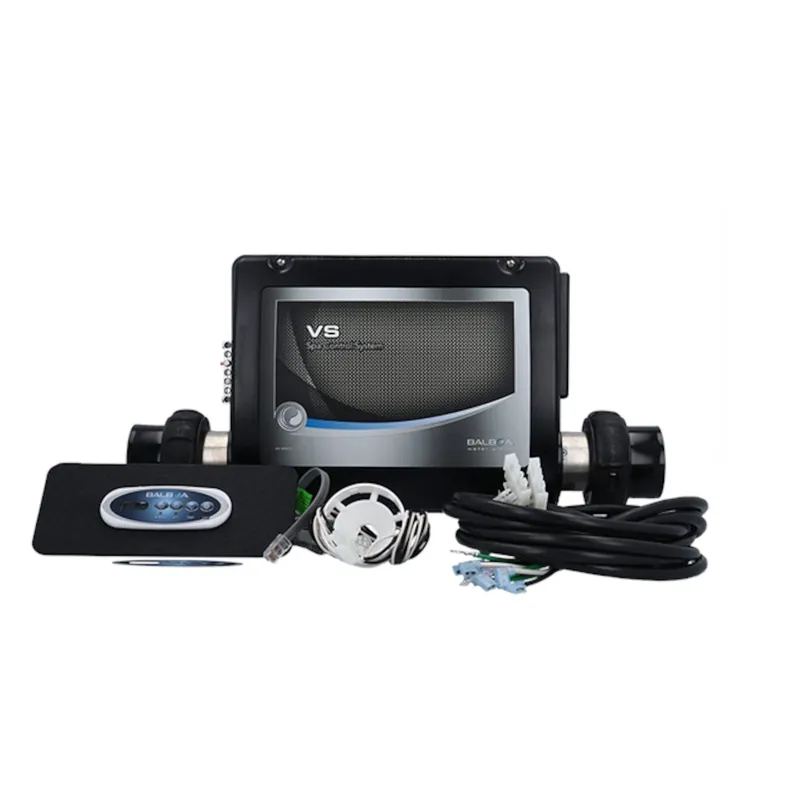

Control System, (Kit), Balboa VS501Z, Conv. 1.4/5.5kW, Pump1, Blower/Pump2 (1 Spd), w/AMP Cords & VL200 Spaside

Balboa VS501Z Control System with VL200 Panel (Discontinued)

Legacy Value Series System – Now Replaced by BP7 Series

Product Overview

As a retailer of hot tub spare parts, I should note that the Balboa VS501Z with VL200 panel has been discontinued and replaced by the BP7 Control System (G6405). However, for reference, here are the specifications of this legacy system.

Historical Features

• Convertible heater (1.4/5.5kW)
• VL200 control panel
• Dual pump/blower support
• Pre-wired AMP cords
• Value Series design
• Basic programming

Technical Specifications

Specification	Detail
Model Number	VS501Z (Discontinued)
SKU	54220
Heater Power	1.4/5.5kW Convertible
Control Panel	VL200
Pump 1	Yes
Pump 2/Blower	Single Speed
Connection Type	AMP Cords
Installation Type	Retrofit
Series	Value Series

Recommended Replacement

The BP7 Control System (G6405) offers these improvements:

• 7-relay technology
• 32 system configurations
• Enhanced compatibility
• Modern interface options
• Expanded features
• Future-proof design

BP7 Upgrade Benefits

• Advanced control architecture
• Multiple pump support
• MicroSilk compatibility
• Universal replacement
• Improved reliability
• Modern support

Replacement Considerations

When upgrading from VS501Z:

• Direct replacement option
• Similar installation process
• Compatible connections
• Enhanced functionality
• Better support
• Modern features

System Capabilities

Original VS501Z controlled:

• Primary pump
• Secondary pump/blower
• Convertible heating
• Basic lighting
• Temperature control
• Standard features

Legacy Control Features

VL200 panel offered:

• Basic display
• Temperature control
• Mode selection
• Simple programming
• Status indicators
• Essential functions

Historical Integration

Was compatible with:

• Standard spa equipment
• Basic pump setups
• Simple accessories
• Common plumbing
• Standard electrical
• Basic controls

	Balboa VS Manual
	Balboa Troubleshooting Manual
	Andi’s Top Tip – VS Spa Packs are compatible with the VL series of Topside Controls. These topside controls are interchangeable but you should check the size of the existing spa controls if you are looking to replace them. There is a manual here that shows the size and dimensions of each of the VL models.



Additional Information

System Voltage	120/240V
Heater Type	Straight/Fixed
Heater Wattage	1.4/5.5kW
Keypad Included	Included
Supports	Pump1 + Pump2

Alternate Part Numbers

• 3-70-0804
• 54220-Z
• G6405

Parts4Tubs is proud to be a Balboa Authorized Online Seller – make sure you only buy genuine Balboa parts from trusted sources.

Showing 1 – 7 of 7 resultsShowing all 7 resultsShowing the single resultNo results foundSort by Price high to lowSort by PopularitySort by RatingSort by Price low to highSort by Price high to lowSort by NewnessSort by Name A – ZSort by Name Z – AFiltersSort resultsResetApply

	Control MySpa | Balboa WIFI Module 59303 – For BP Spa Packs Module, WiFi, Balboa Control MySpa Ultra Gateway US/Canada	$181.61Max: 176Min: 1Step: 1Add to cart
	Balboa Extension Cable 11588-2 (ML Series) Extension Cable, Spaside, Balboa ML Series, 50′ Long w/8 Pin Molex Cable, Replaces 30-1014-50	$144.54Max: 1Min: 1Step: 1Add to cart
	Balboa 25′ Extension Cable 25662-1 (BP Series) Extension Cable, Spaside, Balboa BP Series, 25′ Long w/4 Pin Molex Cable	$82.71Max: 25Min: 1Step: 1Add to cart
	Balboa25' Extension Cable 11589-1 Extension Cable, Spaside, Balboa ML Series, 25′ Long w/6 Pin Molex Cable	$91.29Max: 9Min: 1Step: 1Add to cart
	Balboa Extension Cable 11588-1 (ML Series) Extension Cable, Spaside, Balboa ML Series, 7′ Long w/8 Pin Molex Cable	$87.48Max: 6Min: 1Step: 1Add to cart
	Balboa Extension Cable 22636 Extension Cable, Spaside, Balboa, 25′ Long, 6 Pin Phone Cable	$30.68Max: 10Min: 1Step: 1Add to cart
	Balboa Extension Cable 30311 Extension Cable, Spaside, Balboa, 10′ Long, 8 Pin Phone Cable	$29.55Max: Min: 1Step: 1Add to cart



Hot Tub Wiring – Configuring a Balboa BP7 Spa Control 4.0kW Spa Pack

If you are using a basic setup, and by basic I mean a regular dual speed hot tub pump with a single speed blower, out of the box, your Balboa pack is likely to work without any additional configuration. However, if you are not using a separate circulation pump, the chances are you will need to “configure” the pack using the details below.

On the underside of the Spa Pack covers, you will see a circuit diagram that looks something like this.

Firstly, you need to work through the setup table at the bottom on the left hand side and work out which setup number you need. For example, a 2 speed pump and a single speed blower will need setup #12.

Next, you need to change the DIP switch settings to match your setup. Once you have the right combination of DIP switches, using the topside control you should do the following to change the pack’s setup mode to #12.

To go into the low levels follow the following steps please.

1. Turn tub off.
2. DIP switch 1 move to ON.
3. Turn tub on
4. On the top side control, Press “WARM” twice
5. Press “LIGHT”
6. Press “WARM”
7. Then use “WARM” to move down to the low levels until you get on the set up number you need.
8. Turn off tub
9. DIP switch one back to OFF
10. Turn on tub

Getting the right setup and config is important for the pack to function correctly and the buttons on the top side to do what you expect them to.



Balboa DIP Switches Explained

Most of the Balboa Spa Packs have a set of DIP switches that can seem a little confusing in the setup. In the most basic form, you are telling the Spa Pack how many pumps or blowers you have connected and how many it should allow to run before it turns off the heater (or let them all run at once). The reason for this is if you are limiting the amount of current the pack can draw. You are also telling the pack wither you need additional cool down times if you are using an gas/propane/ASHP additional heater. This to stop the kettling effect you can get in the heaters.

Check the circuit diagram that is on the inside of your Balboa pack and do not just copy the settings I explain below as they may be in a different order. The “logic” behind them is the same so just check what each of the DIP switches says it does.

Fixed-fuction DIP Switches

A1 Test Mode (normally Off).

A2 In “ON” position, add one high-speed pump (or blower) with Heater.(If you have 1 pump and NO blower use this)

A3 In “ON” position, add two high-speed pumps (or 1 HS Pump and Blower) with Heater.(If you have a pump and a blower use this)

A4 In “ON” position, add four high-speed pumps (or 3 HS Pumps and Blower) with Heater.(If you have two or three pumps and a blower use this)

You should only enable one of the A2, A3 or A4. You can use them in combinations, but it is easier just to use one.

A5 In “ON” position, enables Special Amperage Rule B. In “OFF” position, enables Special Amperage Rule A.

Special Amperage Rule A No Limitation(if you are not sure, set it to this. Worst case, your electric will trip if youdon’thave enough current available)

Special Amperage Rule B 2 High Speed Pump Maximum, in Setups 1 – 9 1 High Speed Pump Maximum, and also Blower turns off with 1 High Speed Pump, in Setups 10 – 18(avoid this if you can)

A6 Persistent memory reset (Used when the spa is powering up to restore factory settings as determined by software configuration).

A2, A3, and A4 work in combination to determine the number of high-speed devices and blowers that can run before the heat is disabled. i.e. A2 and A3 in the ON position and A4 in the OFF position will allow the heater to operate with up to 3 high‑speed pumps (or two HS Pumps and Blower) running at the same time. Heat is disabled when the fourth high-speed pump or blower is turned on.

Note: A2/A3/A4 all off = No heat with any high-speed pump or blower.

Assignable DIP Switches

A7 In “ON” position, enables a 5-minute cooldown for some gas heaters (Cooling Time B). In “OFF” position, enables a 1-minute cooldown for electric heaters (Cooling Time A).
